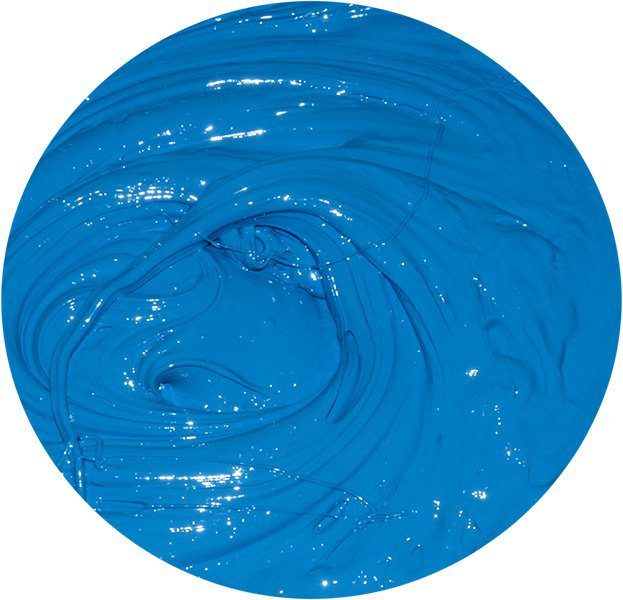

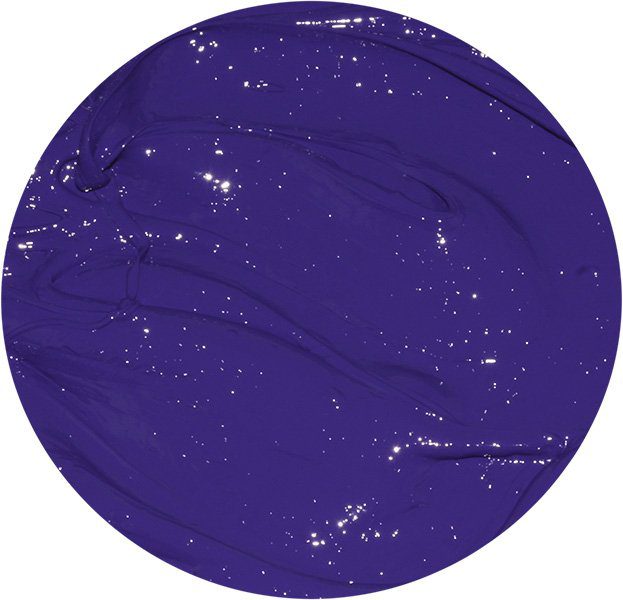

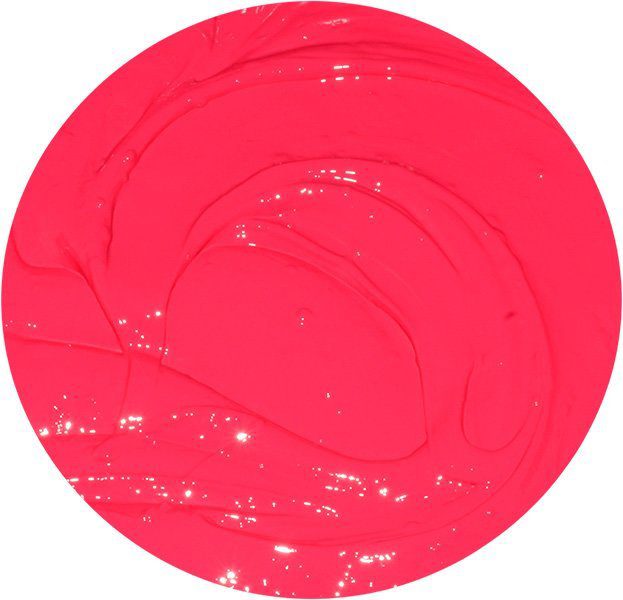

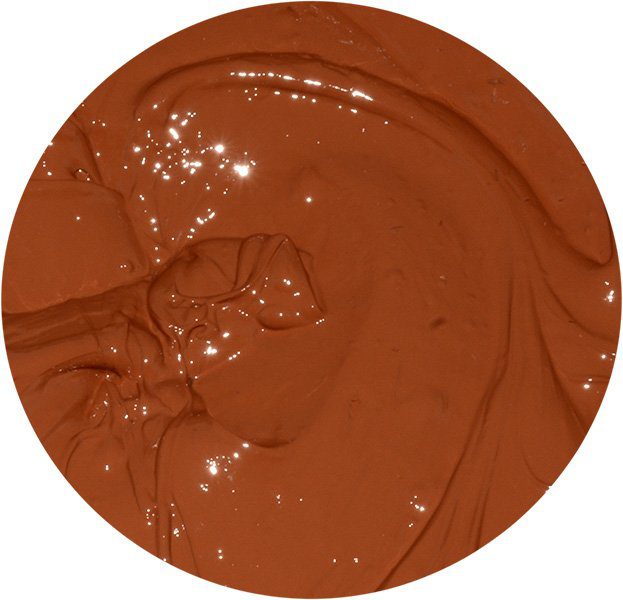

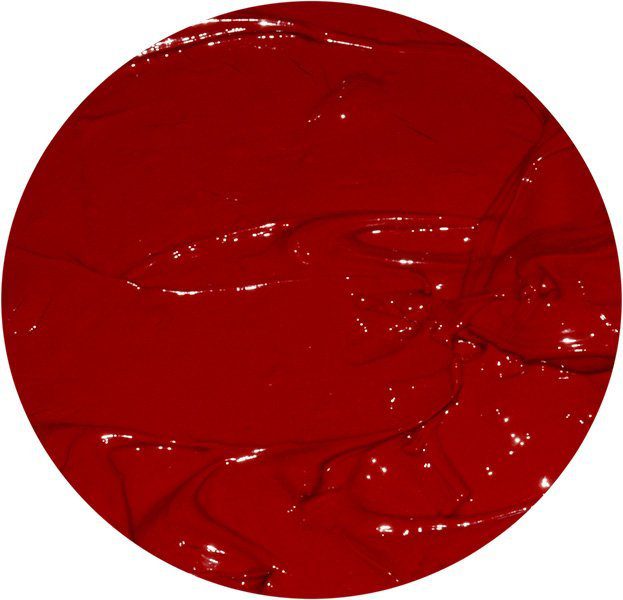

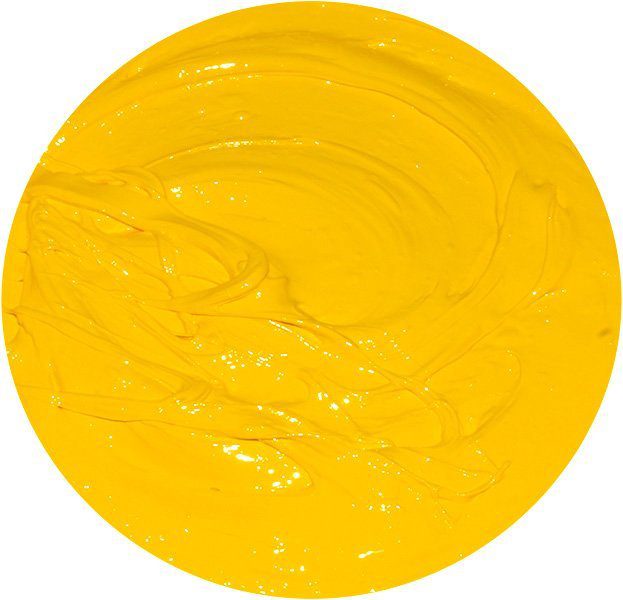

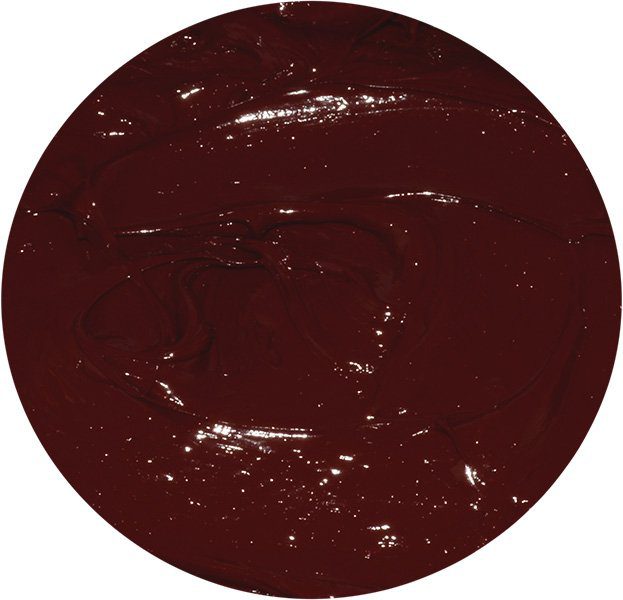

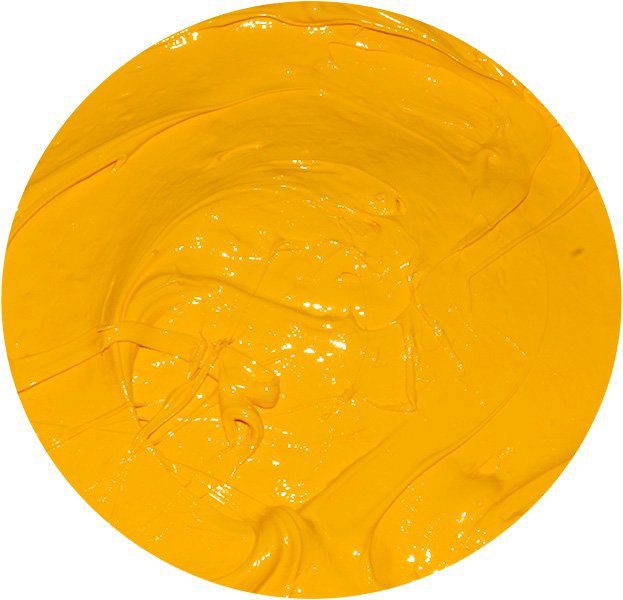

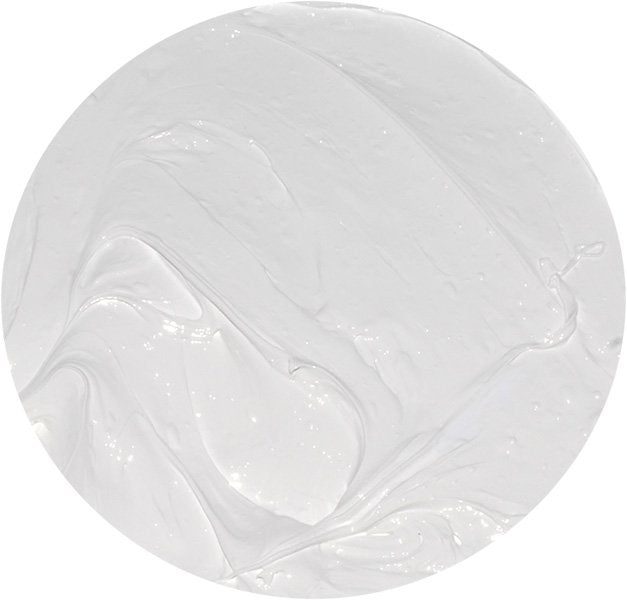

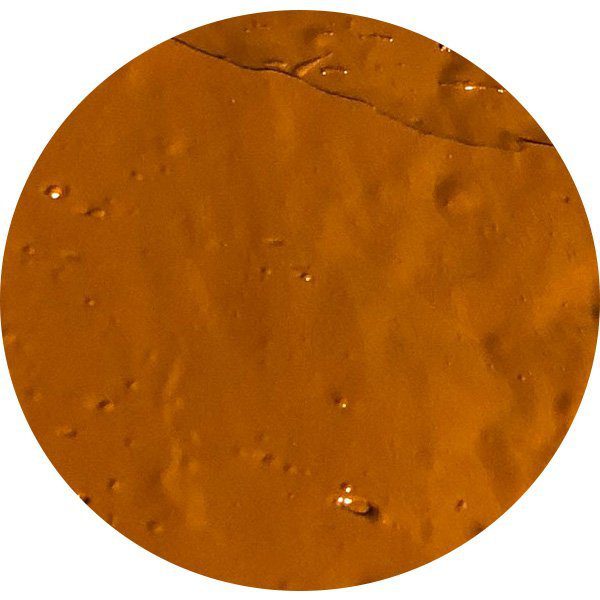

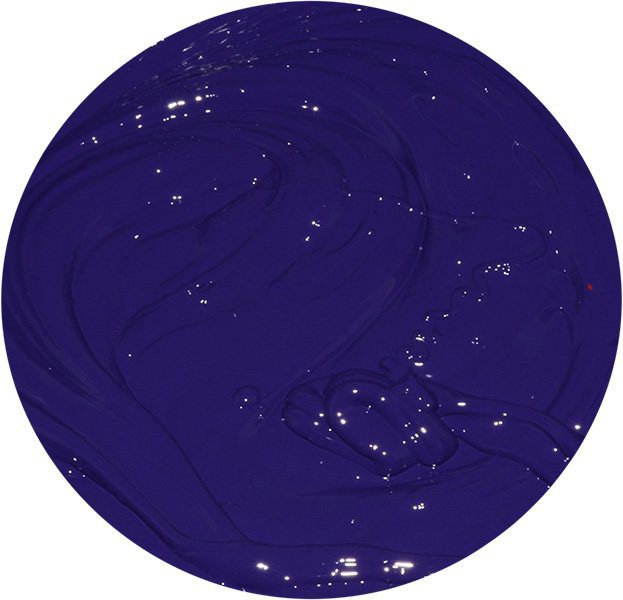

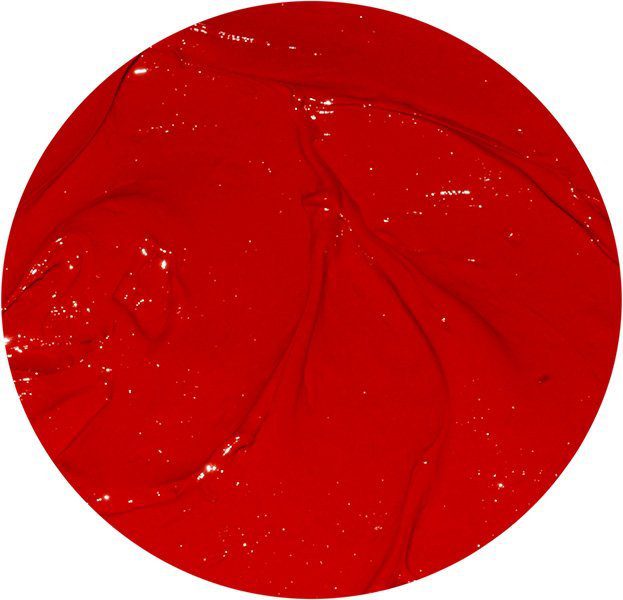

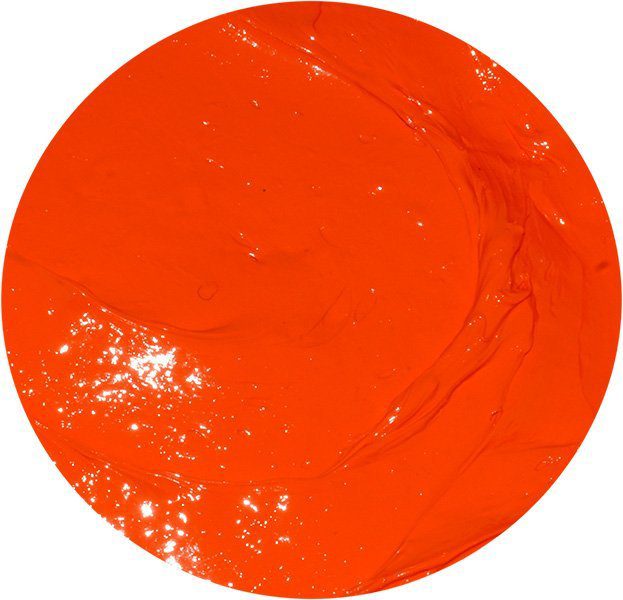

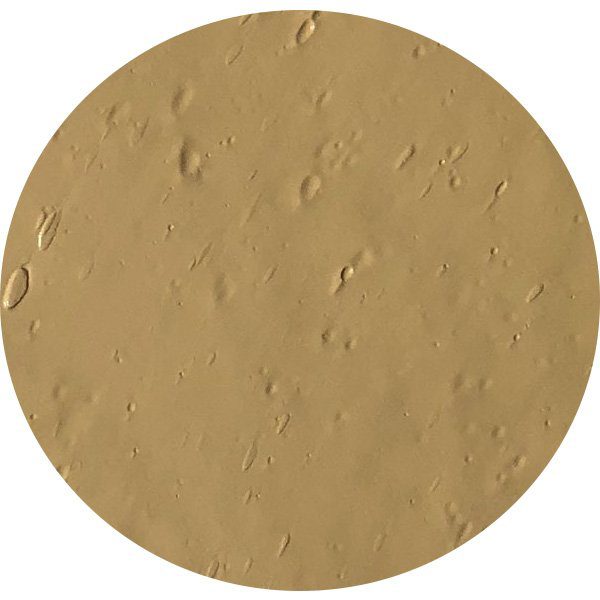

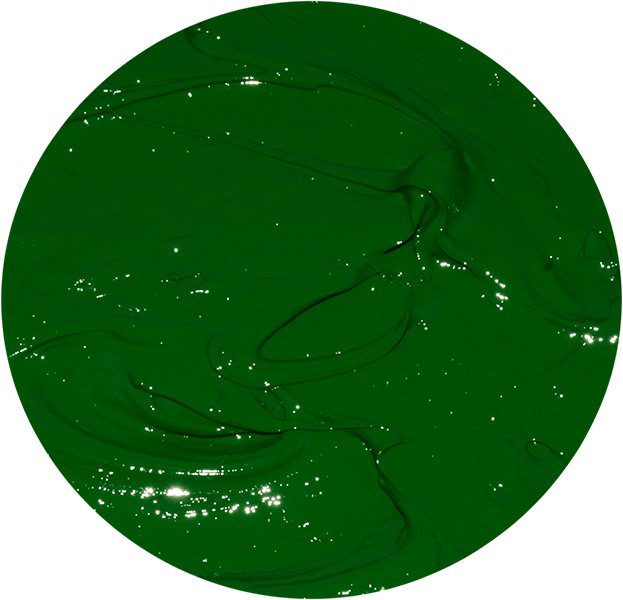

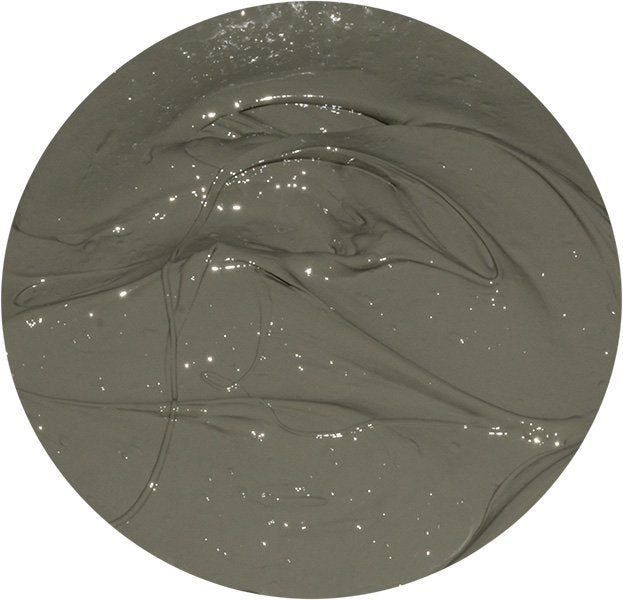

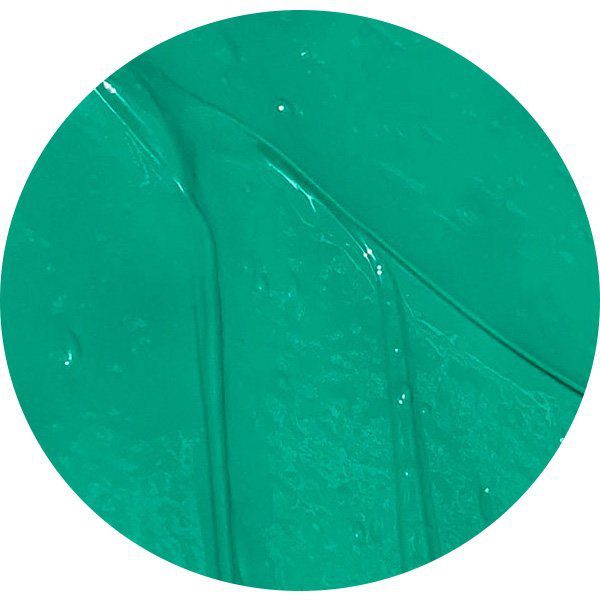

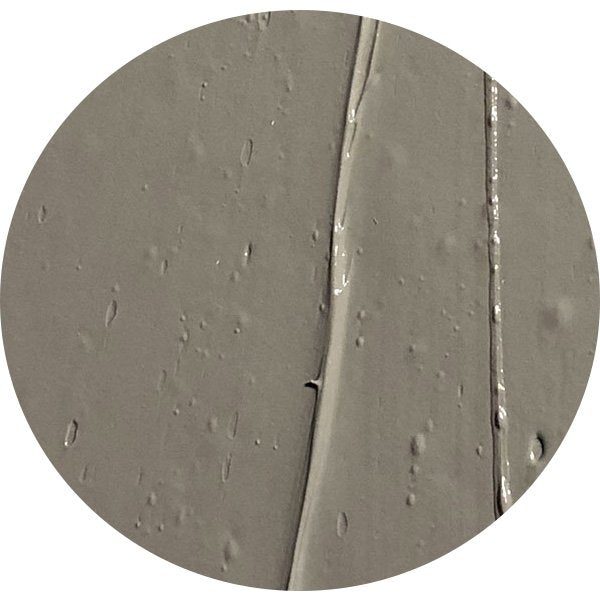

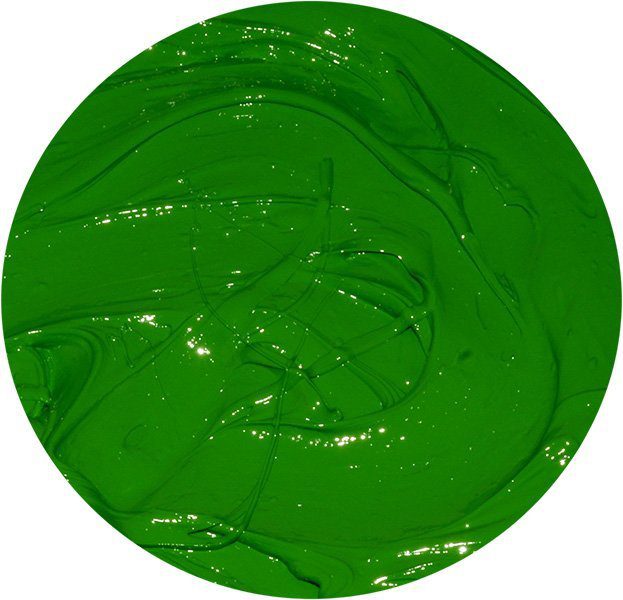

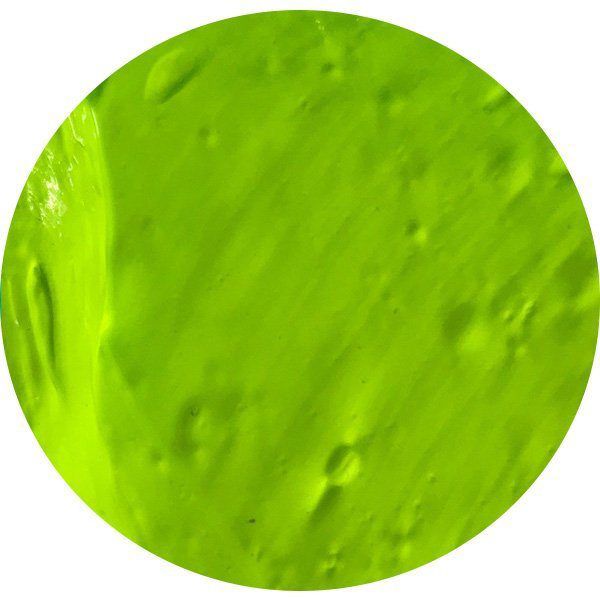

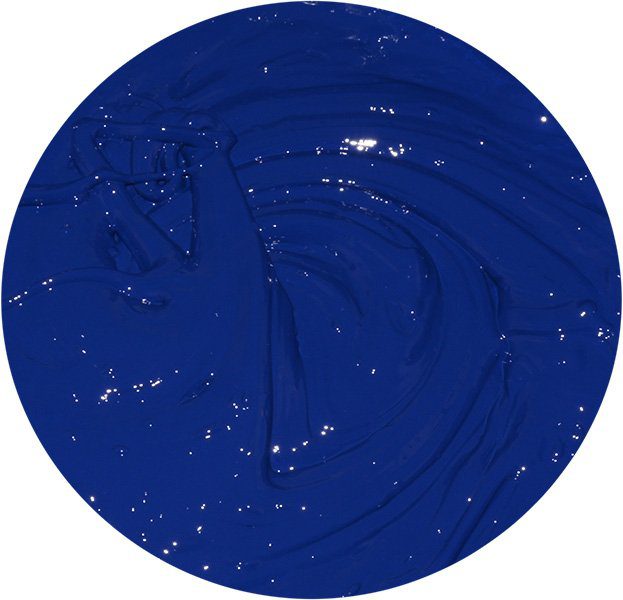

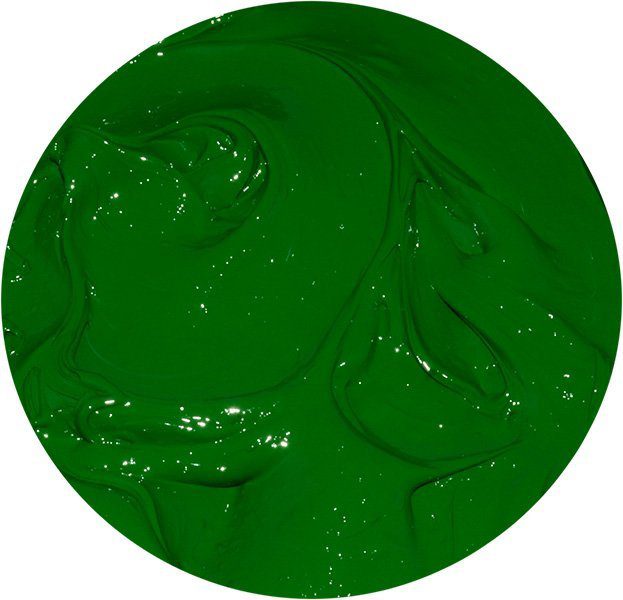

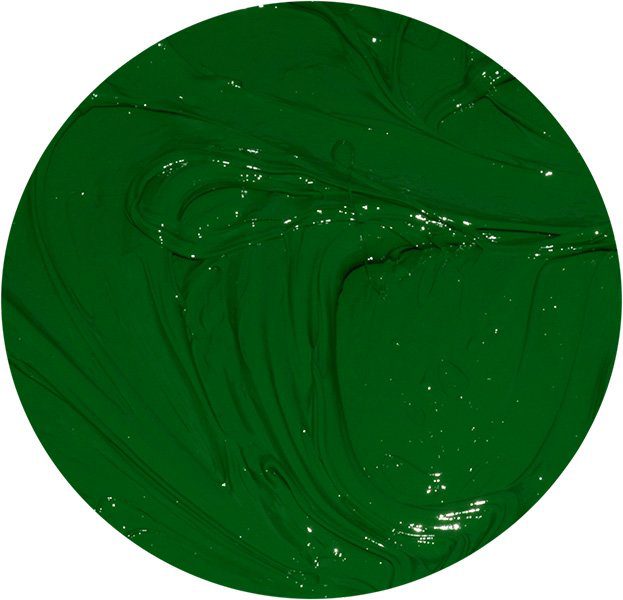

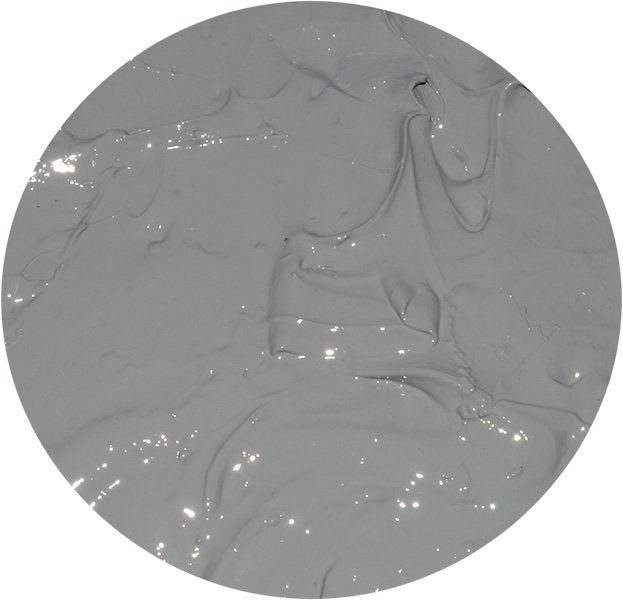

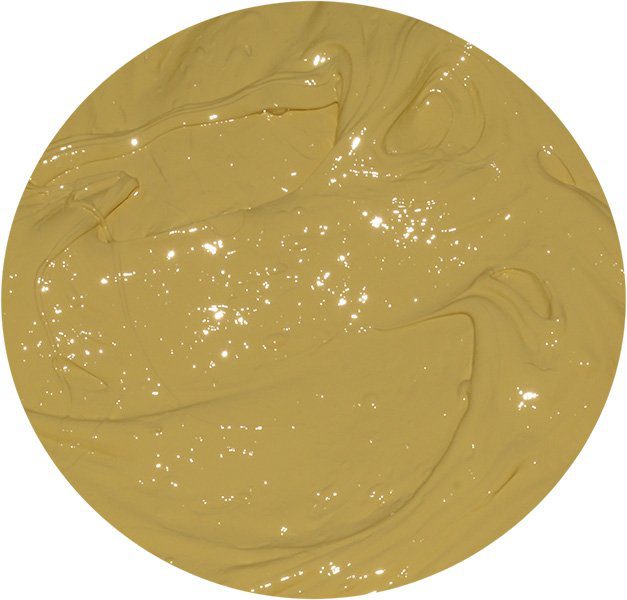

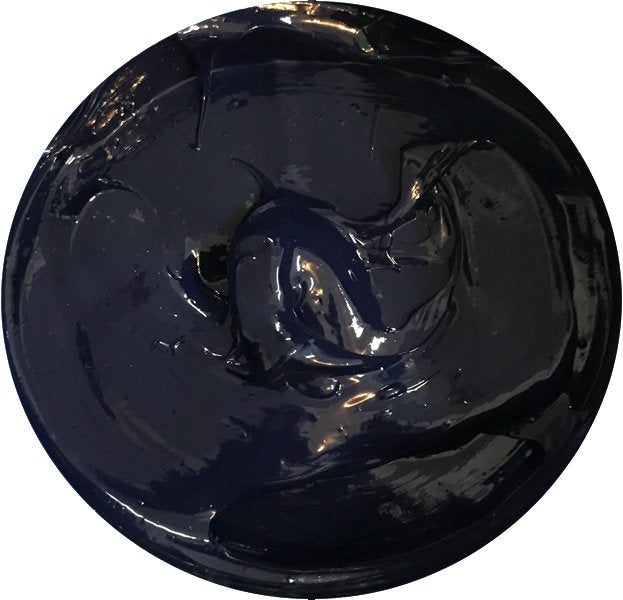

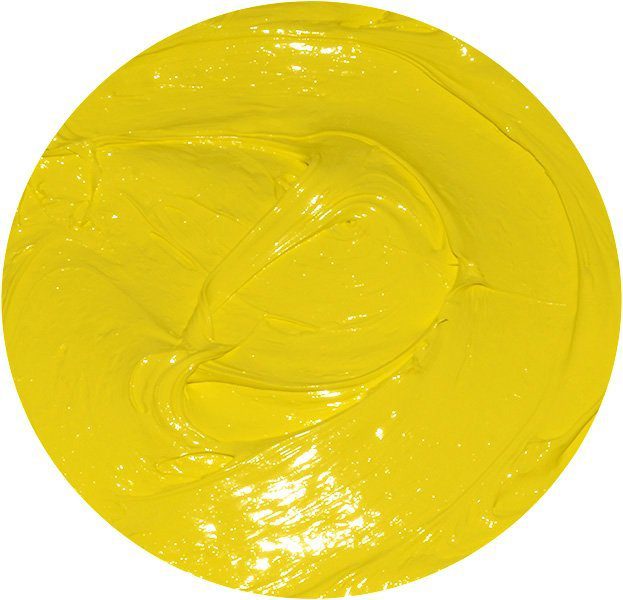

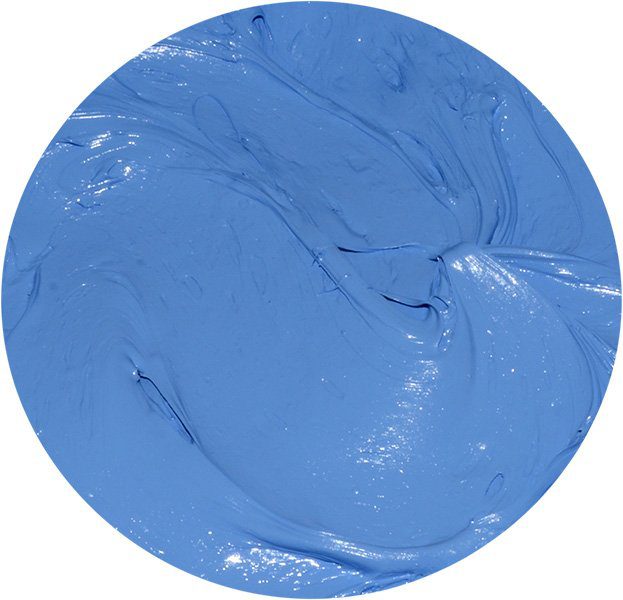

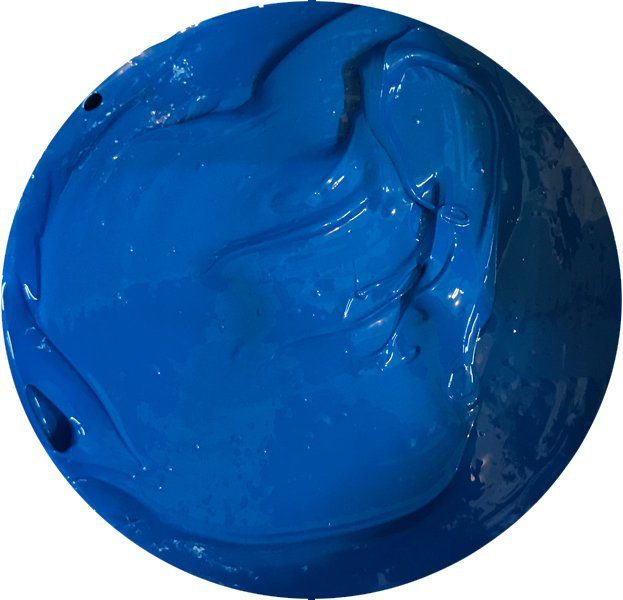

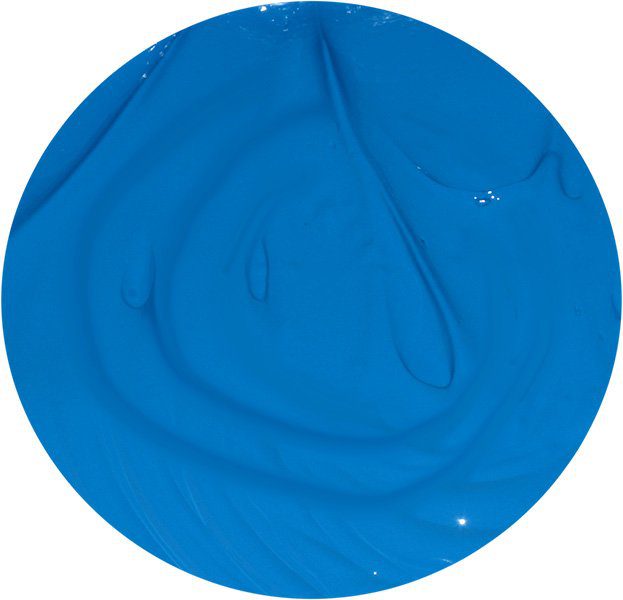

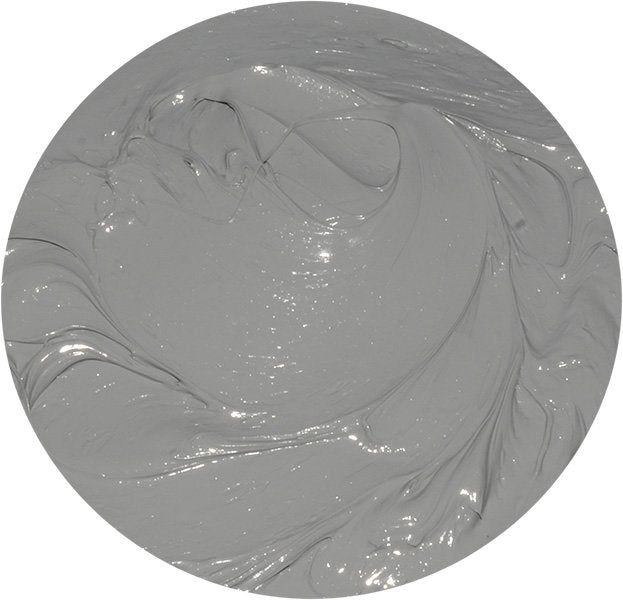

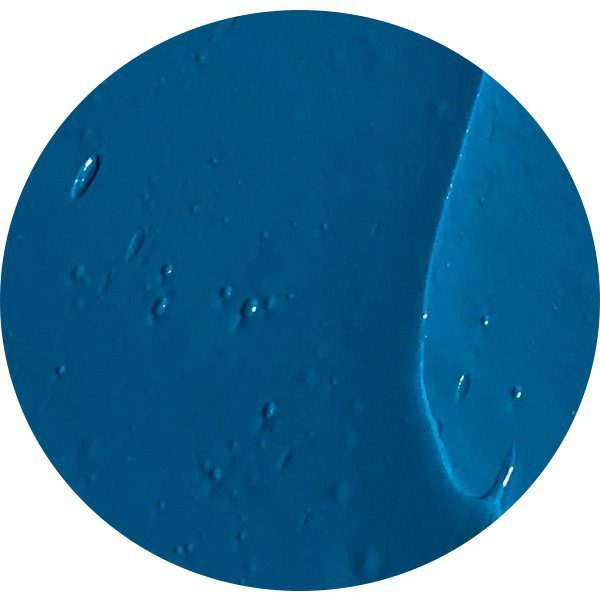

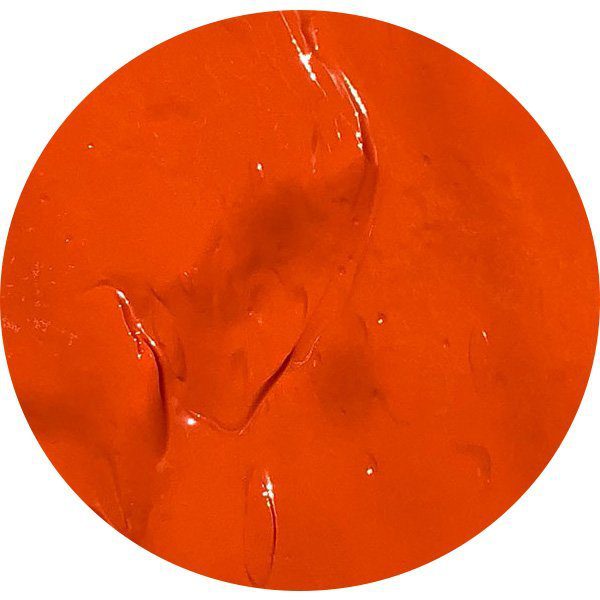

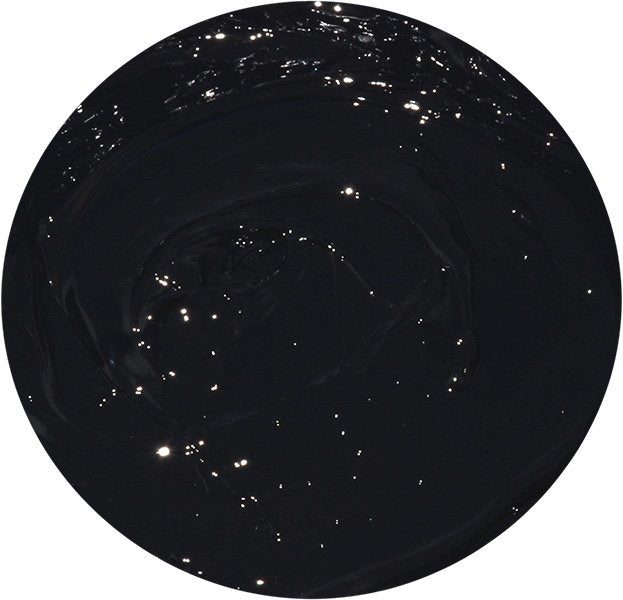

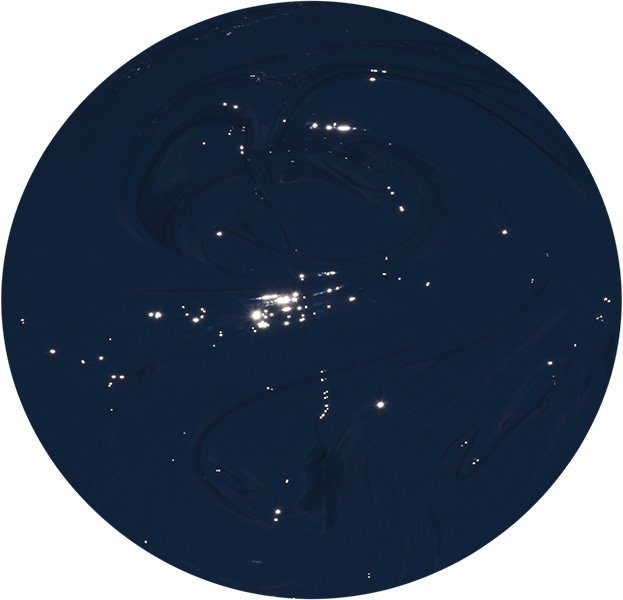

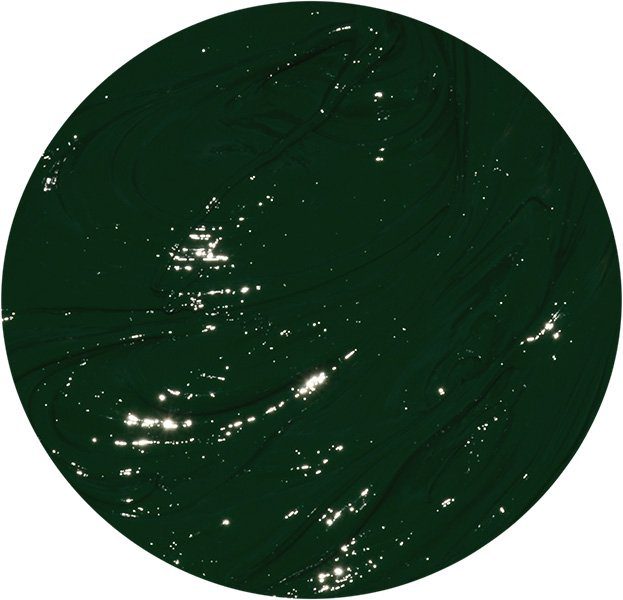

Champion Inks® 3D High-Density Plastisol Ink – Colors – Gallon – For Cotton, Polyester & Blends
Create bold, raised, dimensional prints with production reliability.
Champion Inks® 3D High-Density Plastisol is a thick-bodied, high-viscosity ink engineered to build dramatic height and crisp edges for logos, lettering, and specialty textures. The phthalate-free formula lays down clean, stays flexible, and delivers long-lasting color vibrancy on cotton, blends, and select synthetics.
Key Features & Benefits
-
High-Density 3D Effect – Achieve thick, raised prints with extreme dimension.
-
Sharp Edges & Fine Definition – Clean sidewalls and tight details with proper stencil build.
-
Durable & Flexible – Maintains texture and adhesion after repeated washes.
-
Creamy, Press-Friendly – Smooth laydown for stacked layers and multiple hits.
-
Bleed-Resistant – Helps minimize dye migration on poly blends.
-
Soft-Hand & Stretch – Comfortable, wearable finish despite added height.
Recommended Applications
- 100% Cotton
-
Cotton/Poly Blends – For low-bleed poly, use an appropriate underbase.
-
Thick or Textured Fabrics – Ideal when a tactile, raised effect is desired.
Preparing the Screen for High-Density Printing
-
Mesh Count: 110–160 for bold height; 86–110 for maximum deposit; 160–200 for finer raised detail.
-
Thick Stencil Build: 3–5 coats each side, fully dry between coats. Capillary film (200+ microns) or thick dual-cure emulsions recommended.
-
Exposure: Increase time to fully harden the thick stencil; test for durability before production.
-
Registration & Edge Quality: Inspect for crisp edges and pinhole-free walls prior to press.
Printing & Curing Instructions
-
Squeegee: Sharp 70–75 durometer for clean deposit.
-
Print Stroke: Firm pressure to drive ink through the thick stencil; multiple hits as needed.
-
Flash: 220–250°F (104–121°C) for 3–5 seconds between layers.
-
Final Cure: 320–330°F (160–165°C) for 30–40 seconds. Avoid over-heat that can flatten the 3D profile.
Technical Specifications
| Ink Type |
High-Density Plastisol |
| Viscosity |
Thick-bodied for maximum height & build-up |
| Opacity |
High (effective on light and dark garments) |
| Cure Temp |
320–330°F (160–165°C) |
| Flash |
220–250°F (104–121°C) · 3–5 sec |
| Shelf Life |
12 months from manufacturing date |
Clean-Up
Use Champion OPTIWASH 125 – Ink Remover for efficient screen and press cleanup.
Storage Recommendations
- Store at 65–90°F (18–32°C) in a cool, dry place.
- Avoid direct sunlight and extreme heat.
- Use within 12 months for optimal performance.
Safety & Compliance
-
CPSIA Compliant – Lead <300 ppm; Phthalates <0.1%.
-
Prop 65 Compliant – Apparel-safe formulation.
- Wear gloves and safety glasses; ensure adequate ventilation.
Available Packaging
- Pints • Quarts • Gallons • 5-Gallon • 30-Gallon • 55-Gallon • 220-Gallon Totes
Why Choose Champion Inks® 3D High-Density Plastisol?
For standout dimensional graphics—raised logos, bold lettering, and fashion textures—Champion Inks® High-Density delivers crisp edges, reliable build height, and wash-durable flexibility, job after job.
