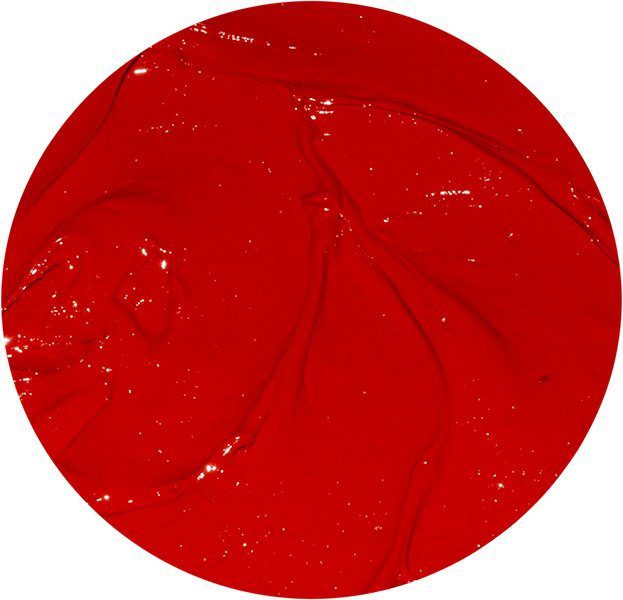

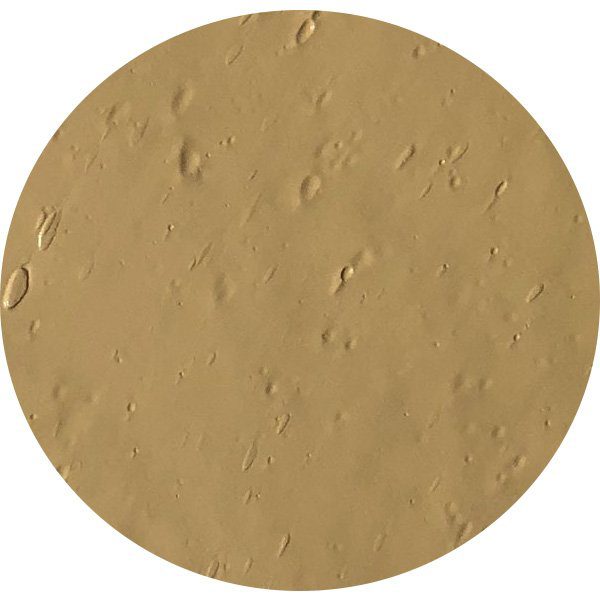

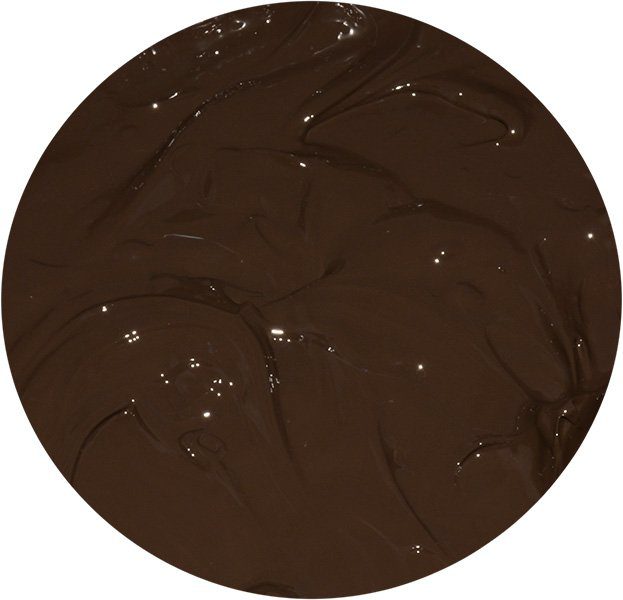

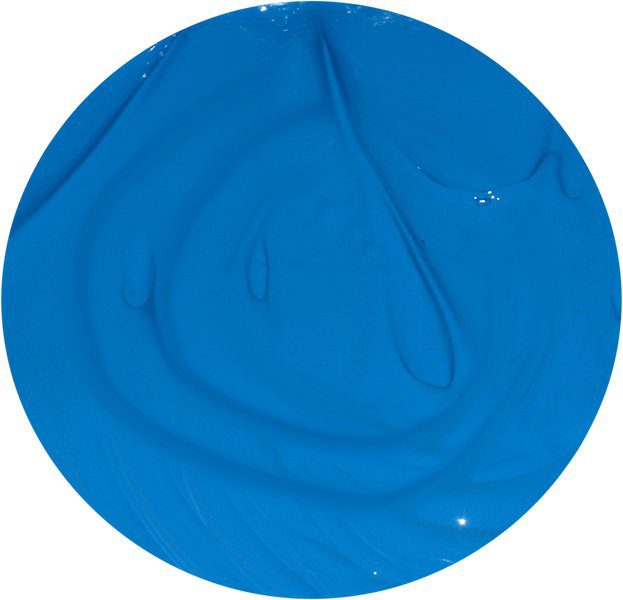

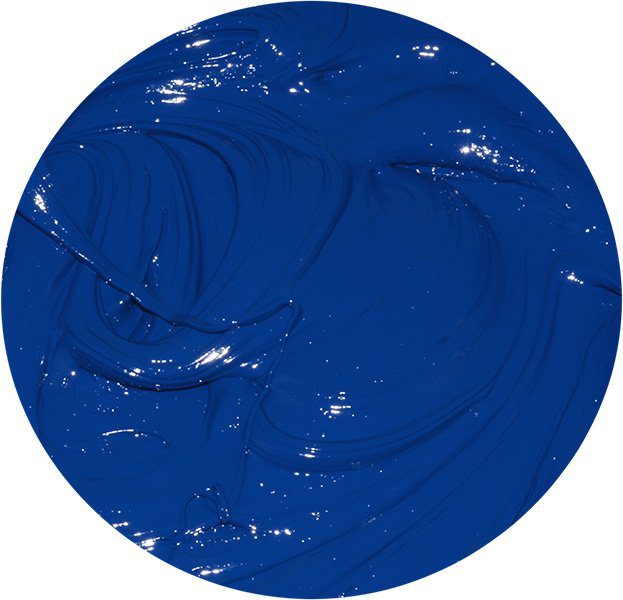

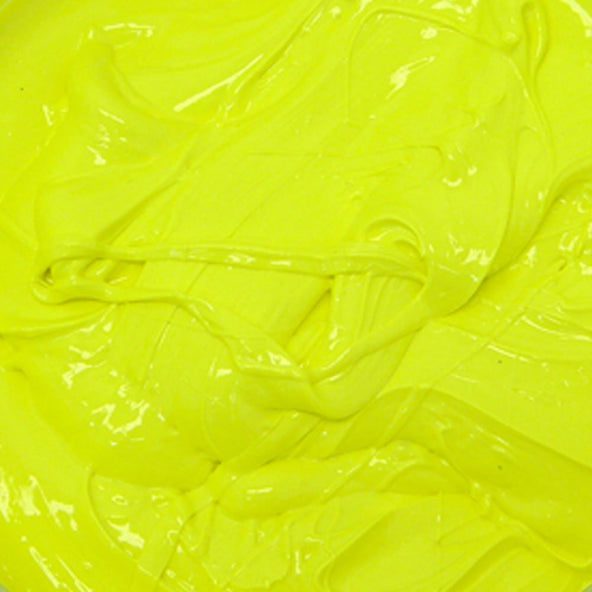

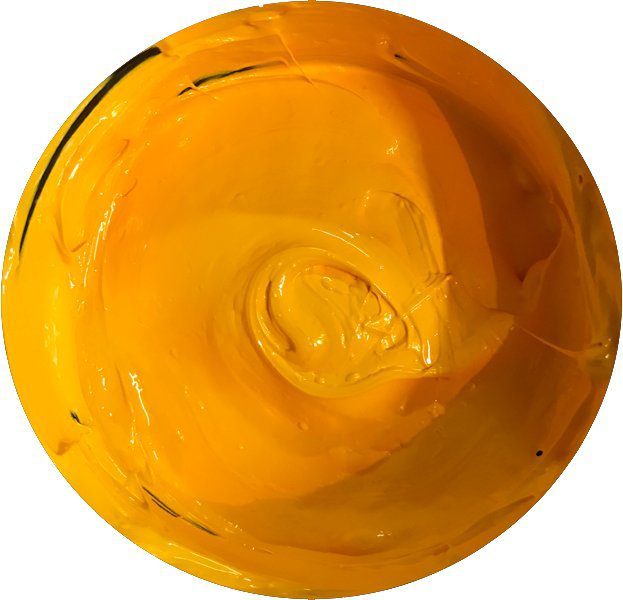

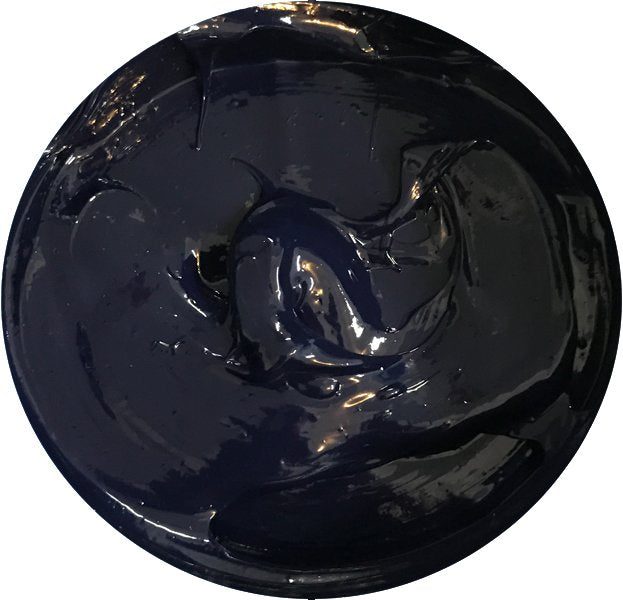

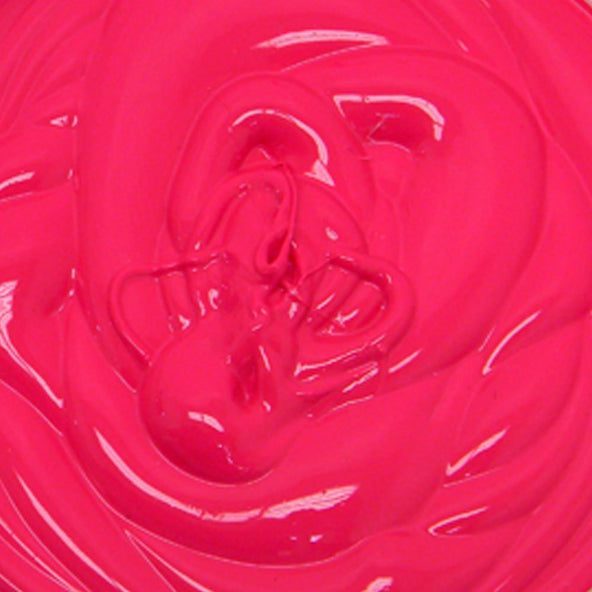

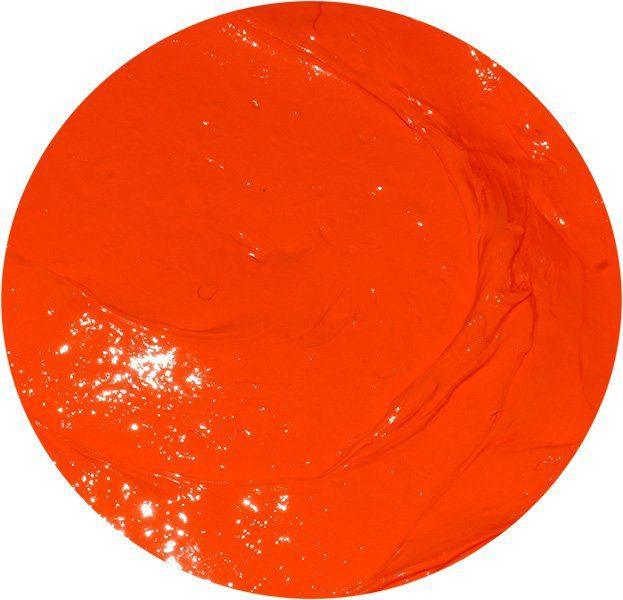

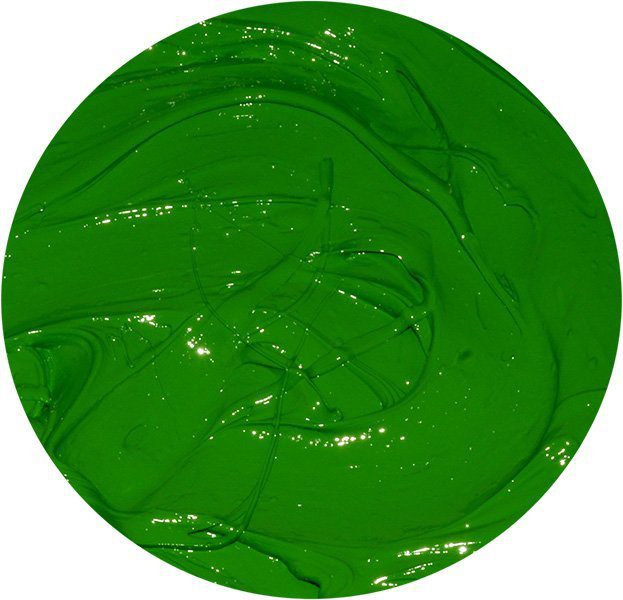

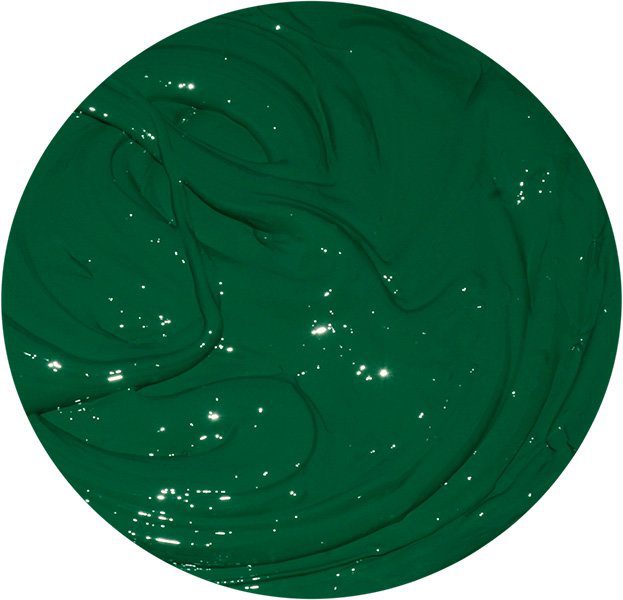

Champion Inks® Puff Plastisol Ink Colors – 5 Gallon
High-volume production with bold, dimensional texture.
Champion Inks® Puff Plastisol Ink Colors – 5 Gallon is a premium, phthalate-free puff ink engineered for professional screen printers seeking raised, 3D effects with excellent durability, coverage, and smooth application. Designed for cotton, polyester, and blends, this ink expands during curing to create a soft, tactile finish that delivers superior texture, flexibility, and color vibrancy on every print.
Product Highlights
-
Outstanding Puff Expansion – Expands under heat to form a bold, raised 3D surface.
-
High Opacity & Bright Finish – Delivers full coverage, even on dark garments.
-
Soft-Hand Flexibility – Creates a raised print that remains comfortable and pliable.
-
Exceptional Durability – Puff texture and brightness withstand repeated washing.
-
Production-Ready Formulation – Optimized for large-scale runs on automatic and manual presses.
-
Versatile Application – Ideal for textured logos, lettering, and layered dimensional designs.
Recommended Applications
- 100% Cotton
- 50/50 Cotton–Polyester Blends (underbase suggested for dark poly)
- Streetwear, Fashion & Lifestyle Apparel
- Branded & Promotional Prints
How to Print with Puff Ink Colors – 5 Gallon
Screen Preparation:
-
Mesh: 86–110 mesh for bold puff height; 160–200 mesh for fine details.
-
Stencil: Apply a thick emulsion or capillary film for proper ink deposit.
-
Pressure: Use medium squeegee pressure for even coverage.
Printing & Flashing:
- Apply one pass for a standard puff, multiple passes for extra height.
-
Flash: 250°F (121°C) for 3–5 seconds between layers.
Curing:
-
Final Cure: 320–330°F (160–165°C) to fully expand the puff effect.
-
Tip: If ink puffs too early, lower flash temperature or raise flash height.
Cleanup & Storage:
- Use Champion OPTIWASH™ 125 Ink Remover for fast, effective cleanup.
- Store sealed at 65–90°F (18–32°C) in a dry, shaded environment.
-
Shelf Life: 12 months from manufacture under proper storage.
Technical Specifications
-
Ink Type: Puff Plastisol Ink
-
Viscosity: Medium-bodied for smooth application & expansion
-
Opacity: High (suitable for light and dark fabrics)
-
Cure Temp: 320–330°F (160–165°C)
-
Flash Temp: 250°F (121°C) for 3–5 seconds
Compliance & Safety
-
CPSIA & Prop 65 Compliant – Safe for apparel and children’s garments.
-
Non-Phthalate Formula – Environmentally friendly (<0.1% DBP, DEHP, DINP, DIDP).
-
Lead Content: <300 ppm per CPSIA 2008 standards.
- Use gloves, safety glasses, and maintain ventilation during printing.
Available Packaging
- Pints
- Quarts
- Gallons
- 5-Gallon Containers
- 30–55-Gallon Drums
- 220-Gallon Totes
Why Printers Choose Champion Inks®
Puff Plastisol Ink Colors – 5 Gallon provides industrial-scale consistency, excellent puff performance, and lasting softness that meet the demands of professional print shops. Perfect for bulk apparel production, contract printing, and brand runs that require premium 3D visual and tactile effects.
Champion Inks® — Engineered for texture, built for scale.
